STANDARD FEATURES
​
BACKLIT KEYPAD
​
WIEGAND INTERFACE
• Up to six ports for Wiegand communication
• Each Wiegand credential has programmable time zones, relay setup and expiration dates
• Interfaces with Standard 26 bit wiegand devices
​
WIEGAND OUTPUT
• Integrate with other Wiegand systems
​
ETHERNET PORT
• Allows for an easy internet connection to the Elika cloud
• Connect an external IP camera for additional monitoring
​
POWER OVER ETHERNET
• Power external devices through the Ethernet port
​
TIMERS
• 7 programmable timers, each with seven
days of the week, provides a total of 49 timers
​
INDIVIDUAL TIME ZONE
• For each code, Elika Smart Key, shared key
• Individual call time schedule for each phone number
​
HISTORY LOG REPORTS
​
INTERNAL MEMORY
• Up to 100,000 total unique users/codes
• 250,000 history events
​
DIGITAL MICROPHONE
• Ensures clear voice communication
​
UP TO SIX RELAY OUTPUTS WITH PROGRAMMABLE STRIKE TIMES
​
UP TO SIX PROGRAMMABLE CONTACT INPUTS
IMPORT DATABASE FROM EXCEL (CSV)
ELIKA EXCLUSIVE FEATURES
INTELLIGENT DIAGNOSTIC SYSTEM
• Get real-time diagnostic information
• Real-time incident notifications
DESIGN
FOUR COLOR OPTIONS
• Silver (Standard), White, Gunmetal, and Bronze
​
5.5 INCH TOUCH DISPLAY
​
COURTESY LIGHT
​
ILLUMINATED CALL BUTTON
SECURITY AND SAFETY
TAMPERING AND ACCESS
• Vandalism proof casing
• Security screws
​
FORCED ENTRY SECURITY SHUTDOWN WITH INTERNAL SIREN
​
8.5" x 12" x 4.25"

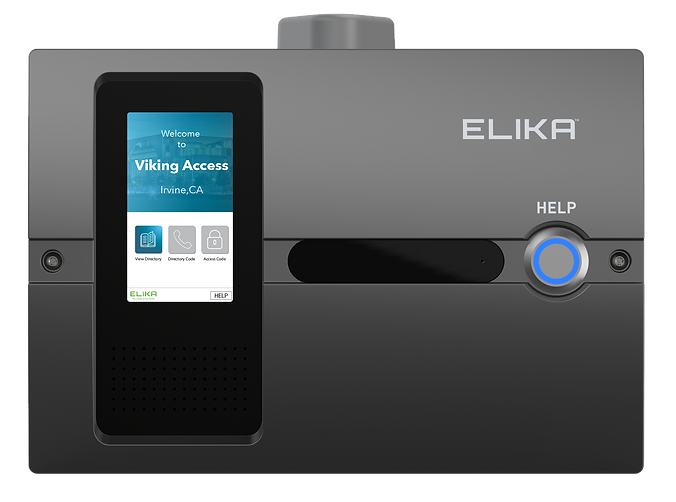

ELIKA 722
Specifications
ALL INCLUSIVE FEATURES
WEB BASED APP
•Allows for remote programming of the system and updates in real-time
MULTI-PLATFORM SOFTWARE
• Compatible with Apple, Android, Windows and any smart device
​
MULTIPLE WIRELESS COMMUNICATION OPTIONS
•3G and 4G
...for voice and data
• VoIP (Voice over Internet Protocol)
​
5.5 INCH FULL COLOR HD TOUCH SCREEN
3G/4G CELLULAR MODULE
​
DAY / NIGHT HD VIDEO CAMERA
• Use a smart device to view and have a two-way
conversation with the visitor
MOTION SENSOR
• Capture videos and images upon motion detection with adjustable sensitivity
WI-FI
•Allows for remote programming
BLE APP (BLUETOOTH)
• Elika Smart Key enables your smart device to grant you access when you get in range of the system
PROTECTION
ELECTRICAL PROTECTION
• Short circuit protection
• Electro static discharge protection
• Reverse polarity protection
• Relay contact protection
• Protection up to 200 million watts
ALUMINUM ENCLOSURE
• UV powder coating provides additional protection against corrosion and weather elements
​
IP65 RATED ENCLOSURE
OPTIONAL SERVICES
CLOUD STORAGE
• Save your videos, pictures, motion events and keep track of history, logs all on a secure Cloud Based system
NFC (NEAR FIELD COMMUNICATION)
ZIGBEE
• Creates a long range wireless mesh between all Elika units
​
LITHIUM BATTERY PACK AND CHARGER
​
VoIP (VOICE OVER INTERNET PROTOCOL)
• Calls are made through internet connection, either wireless or Ethernet cable
​
RFID CARD READER
